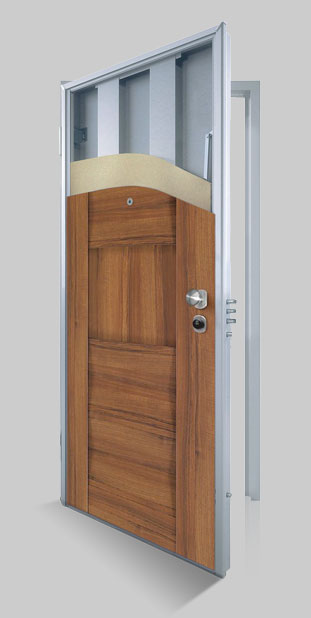

Victoria Single Doors

NOMINAL WIDTH
900 MM

NOMINAL HEIGHT
2100 MM

FRAME PASSAGE
890X2100 MM

FRAME BRICK TO BRICK
1030 X 2170 MM

MASONRY OPENING
1040 X 2180 MM

• 12/10 BOY-TYPE PICKLED STEEL LEAF
• 1 LOWER DEADBOLT WITH ONE PIVOT
• EUROPEAN CYLINDER LOCK WITH3 LATCHES
• 2 ADJUSTABLE HINGES
• 3 HINGES BOLTS
• 1 VERTICAL DEADBOLT
• PVC RUBBER SEAL
• MOBILE DROP SILL
• INTERNAL INSULATION
• 15/10 PLASTICATED STEEL FRAME
• 15/10 STEEL SUB FRAME COATED WITH ZINC
• SAFETY CATCH
• DOOR VIEWER
